Vigie is a single board that measures the energy of a sailboat or a 12 V battery pack, keeps watch all year and reports. It replaces the “ESP32 devkit + INA226 module + LM2596 converter” stack with an 86 × 54 mm four-layer board, and sits upstream of the main switch — the one module that stays alive through the winter: its converters draw 22 µA per stage, and the whole board stays below a milliamp.

Overview

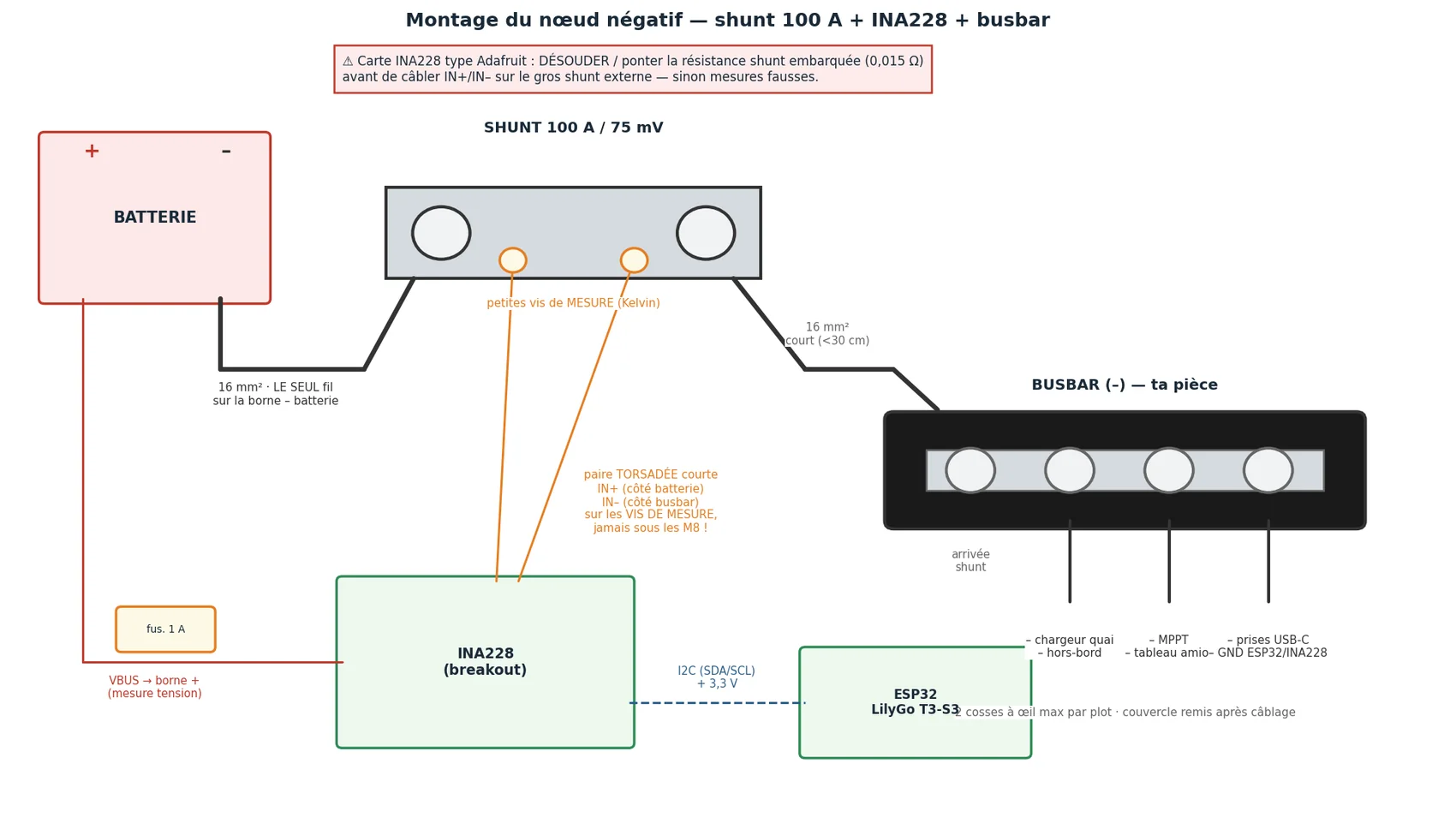

One point of truth: all current aboard flows through a 100 A / 75 mV shunt in the negative bus, and the board only reads the voltage across it, in four wires. No load current flows through the board.

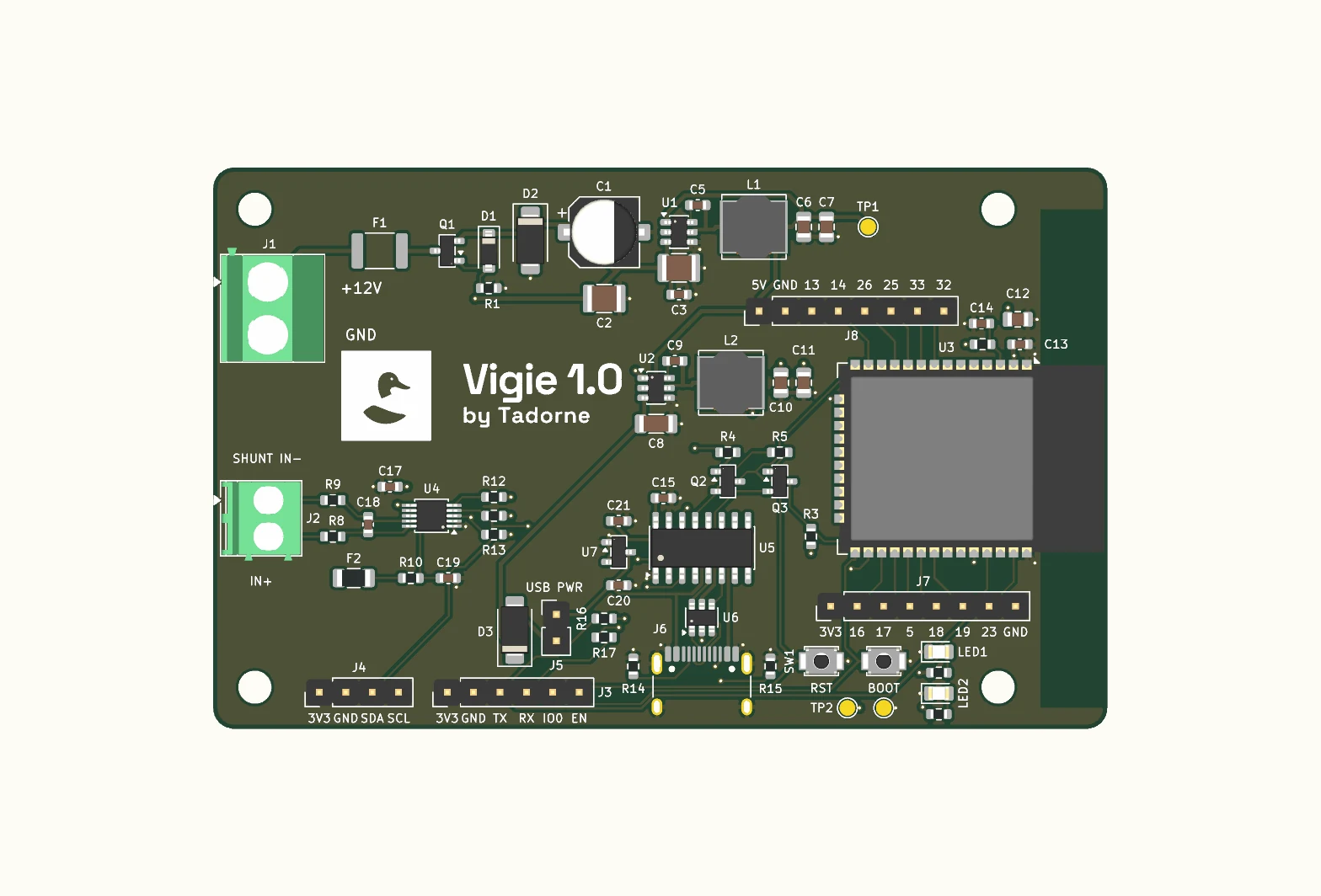

The board

Power

Two switching converters from the same family share the chain: AP63205WU for 12 V → 5 V and AP63203WU for 5 V → 3.3 V, 2 A each at 1.1 MHz. The hard point of an always-on node is their quiescent current: 22 µA per stage, where an LM2596 draws 5 to 10 mA continuously, about 3.5 Ah a month taken for nothing.

The input is protected by a polyfuse, a reverse-polarity P-MOSFET (45 mΩ, with its gate zener — mandatory, since the battery reaches 14.4 V while charging) and an SMAJ16A TVS. On the bench, jumper J5 powers the board from USB; it is open by default so the 5 V cannot climb back to the battery terminal. The CH340C is powered by an LDO taken from USB VBUS alone: unplugged, it draws nothing.

Measurement

The INA226 works across a 0.75 mΩ shunt in the negative bus: 75 mV of common mode instead of 12 V, and VBUS reads the battery voltage directly. Its range is fixed at ±81.92 mV — the ADCRANGE bit does not exist on this part, unlike the INA228 — which gives, with the native 2.5 µV step, a resolution of 3.33 mA. One hundred amps use 91.6 % of full scale.

Gain, zero and current sign are set in software (i_gain, i_offset_mA, i_invert): a J2 wired the wrong way round is corrected without taking the board apart. Amp-hour counting is software too, since the INA226 has no charge accumulator. Finally, ALERT arrives on GPIO 4, an RTC pin: it can wake the ESP32 from deep sleep.

The precaution is not theoretical: at 100 A, 20 cm of 16 mm² cable is already 23 mV, close to a third of the measurement range.

Routing and placement

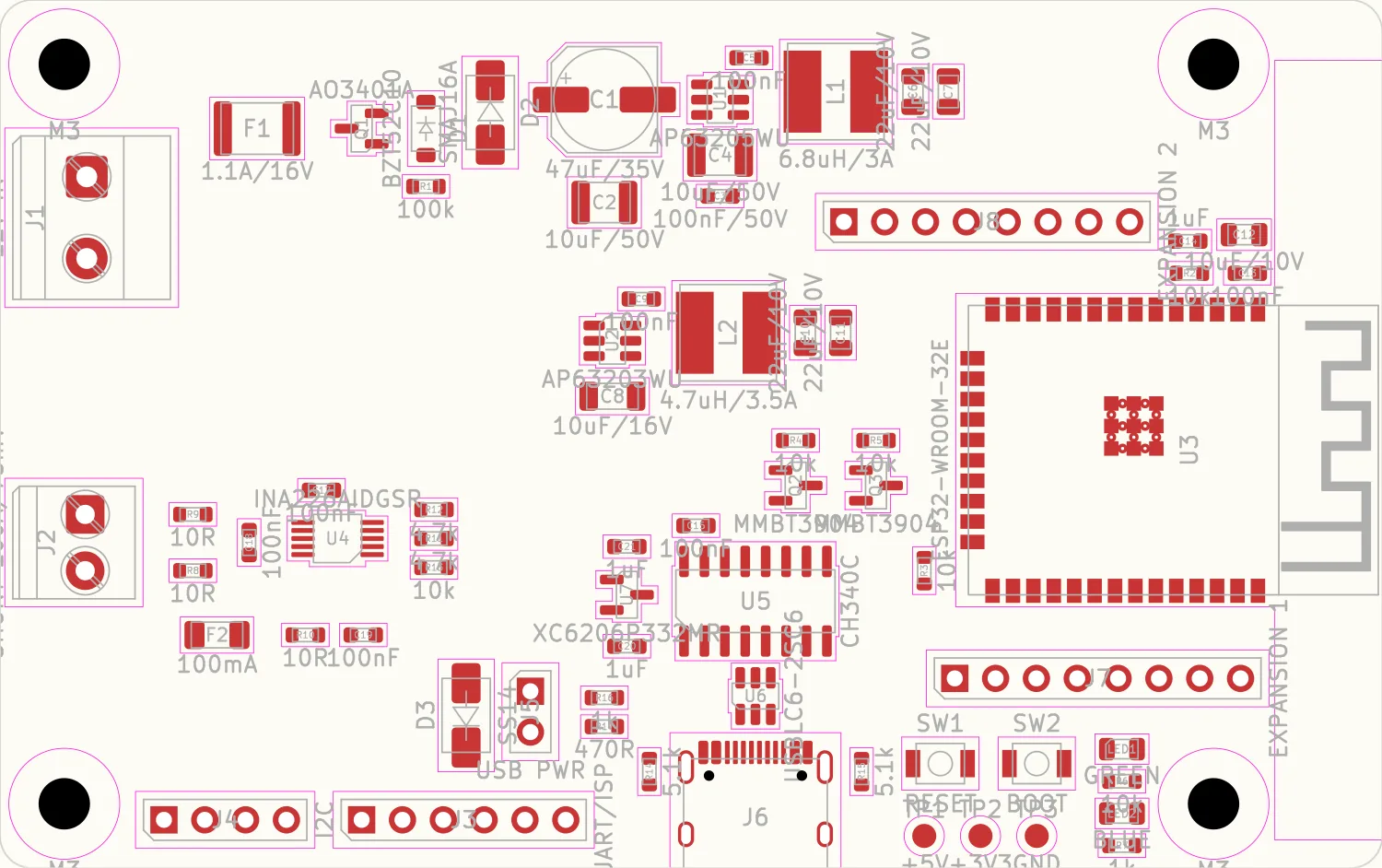

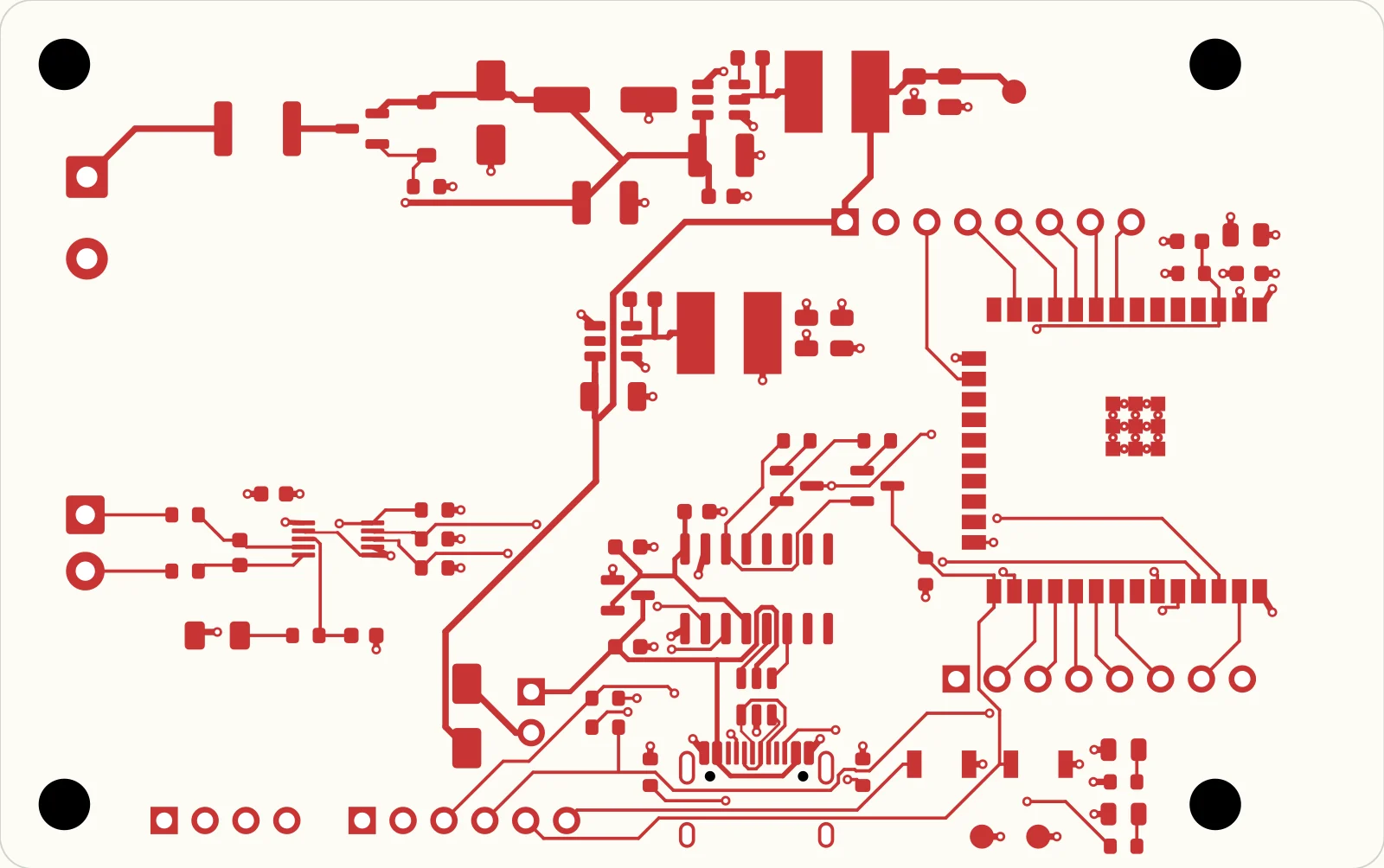

The two inner layers are solid planes with no tracks at all: In1 for ground, In2 for +3.3 V. Every SMD ground and +3.3 V pad drops to its plane through its own via, placed and locked before routing. Signal routing fits on the two outer layers.

Connectors

I2C is on SDA 21 / SCL 22, the status LED on GPIO 2, the BOOT button on GPIO 0, the console on TX 1 / RX 3. GPIO 16, 17 and 18 are grouped on J7 for the MPPT’s future RS485. The strapping pins 12 and 15, like GPIO 34 to 39, are not brought out.

Firmware

The firmware runs on PlatformIO, with a pinned pioarduino platform (Arduino-ESP32 3.3.11 / ESP-IDF 5.5) and no external library. It is published as version 1.0.0 under the GPL-3.0 licence, in the firmware/ folder of the repository. It also runs on a bare ESP32 devkit: a battery simulator stands in for the missing INA226, and every simulated measurement carries the SIM flag all the way into the log and onto the air.

The cycle is deep sleep broken by short wake-ups:

Measurement averages 1024 INA226 conversions, a 9.6 s sliding window that keeps averaging while the ESP32 sleeps. State of charge is coulometric counting: trapezoids between measurements, 0.90 charge efficiency, Peukert exponent 1.25 in discharge beyond C/20. It resynchronises to 100 % when the voltage holds above the threshold with a low tail current, and re-anchors on the open-circuit voltage table after four hours at rest.

The log lives in a raw 896 KB partition, with no file system: 32-byte records protected by a CRC. At the default cadence the ring keeps about 95 days of samples and 2.5 years of daily summaries. The board has no backed-up clock: time arrives from the admin page, from the gateway or from the console, and a time_sync record makes it possible to date what came before.

Battery protection is a staircase, and a degradation needs two consecutive evaluations — an engine start does not cut the node:

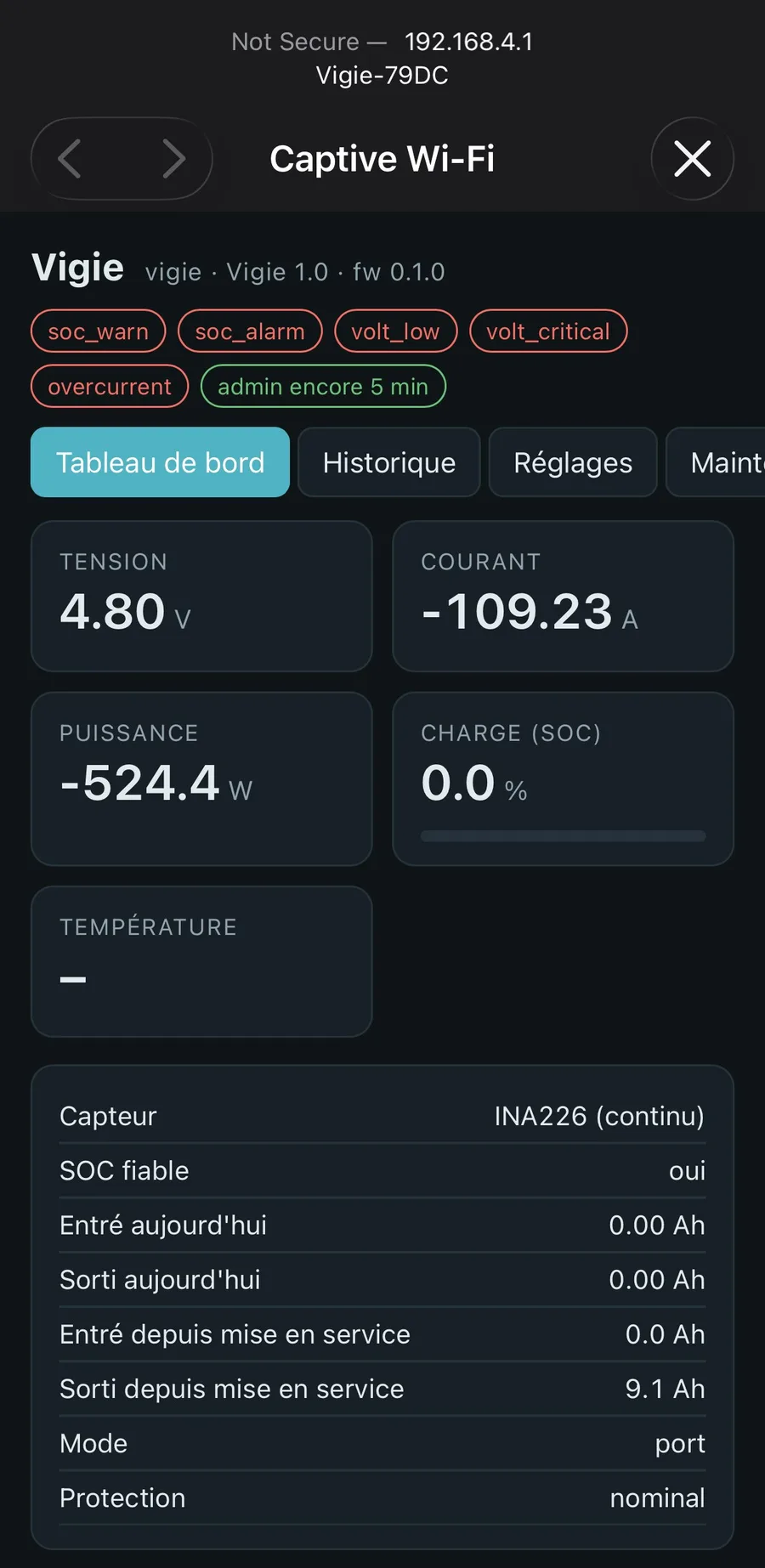

Administration is an access point, Vigie-XXXX (WPA2, captive portal), opened on cold start or by holding BOOT: dashboard, 6 h to 30 day history with CSV exports, settings, SOC reset, OTA update and log erase. The serial console offers the same functions.

The enclosure and the TPU sole

The node sits in an off-the-shelf IP67 sealed enclosure: the enclosure provides the sealing, and a TPU 95A sole takes care of the mechanical fit. It lines the bottom of the enclosure, carries the shunt in a cradle whose lips close over the blocks, and houses the board on four posts. A pad, glued under the lid, presses on the cradle with 1.5 mm of crush: the shunt is clamped between the floor and the lid, with no play.

The sole prints at 25 % gyroid, the pad at 100 %; the cradle comes out solid thanks to an infill modifier. The OpenSCAD source, the STL files and the Cura profiles are in the mecanique/ folder. Several dimensions of this enclosure are still to be taken from the real part.

Network and application

The node pushes its measurements in two complementary ways. On the local network, TsubameBus: encrypted ESP-NOW frames, a 12-byte header and a CBOR body, with HELLO, ENERGY, ALERT and LOG_BATCH. A receiver acknowledges the last record it got, so a module absent for a week recovers the whole week when it returns. Towards phones, a BTHome v2 advertisement over Bluetooth LE, readable as-is by Home Assistant or nRF Connect, with optional AES-CCM encryption.

A Signal K implementation is planned.

The Tadorne iPhone app listens passively: no connection, no pairing, nothing is transmitted. It keeps the history of what it caught, with the app open; the full log stays in the node’s flash.

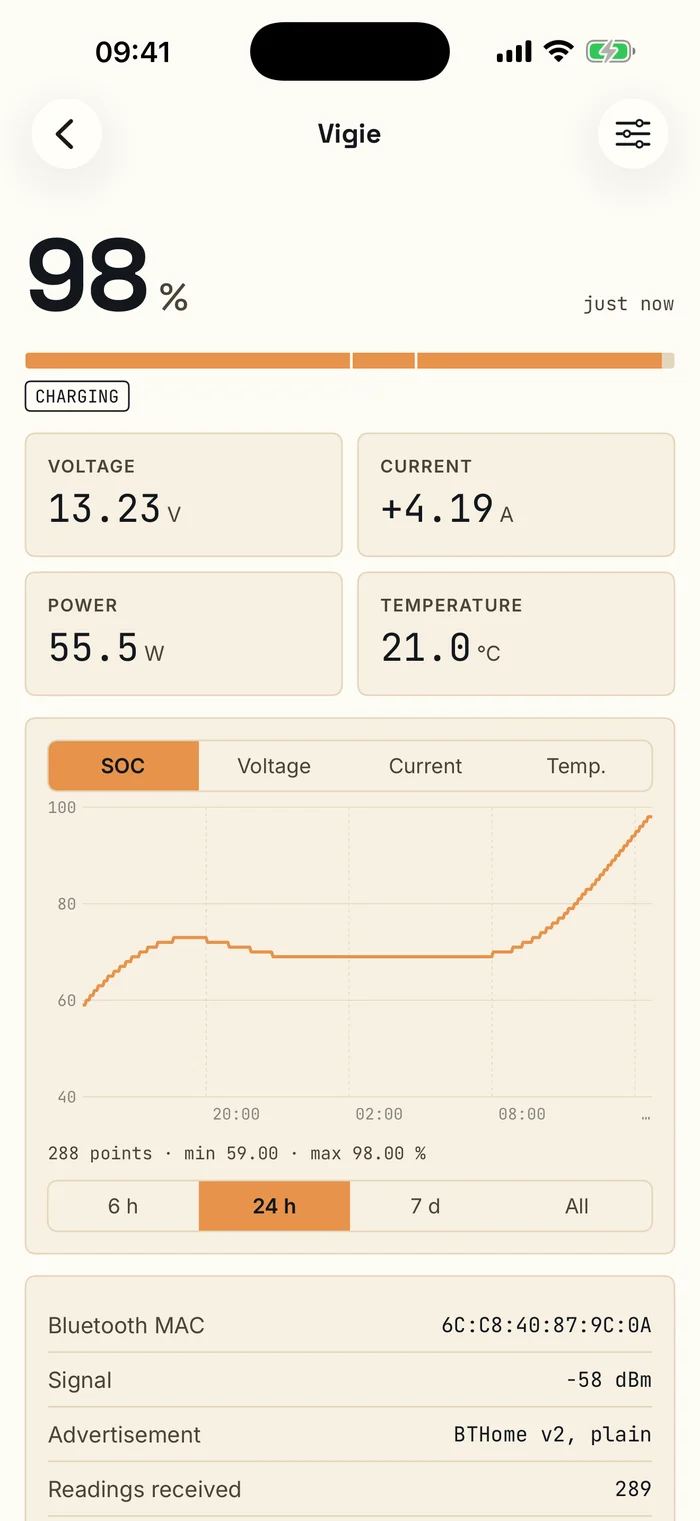

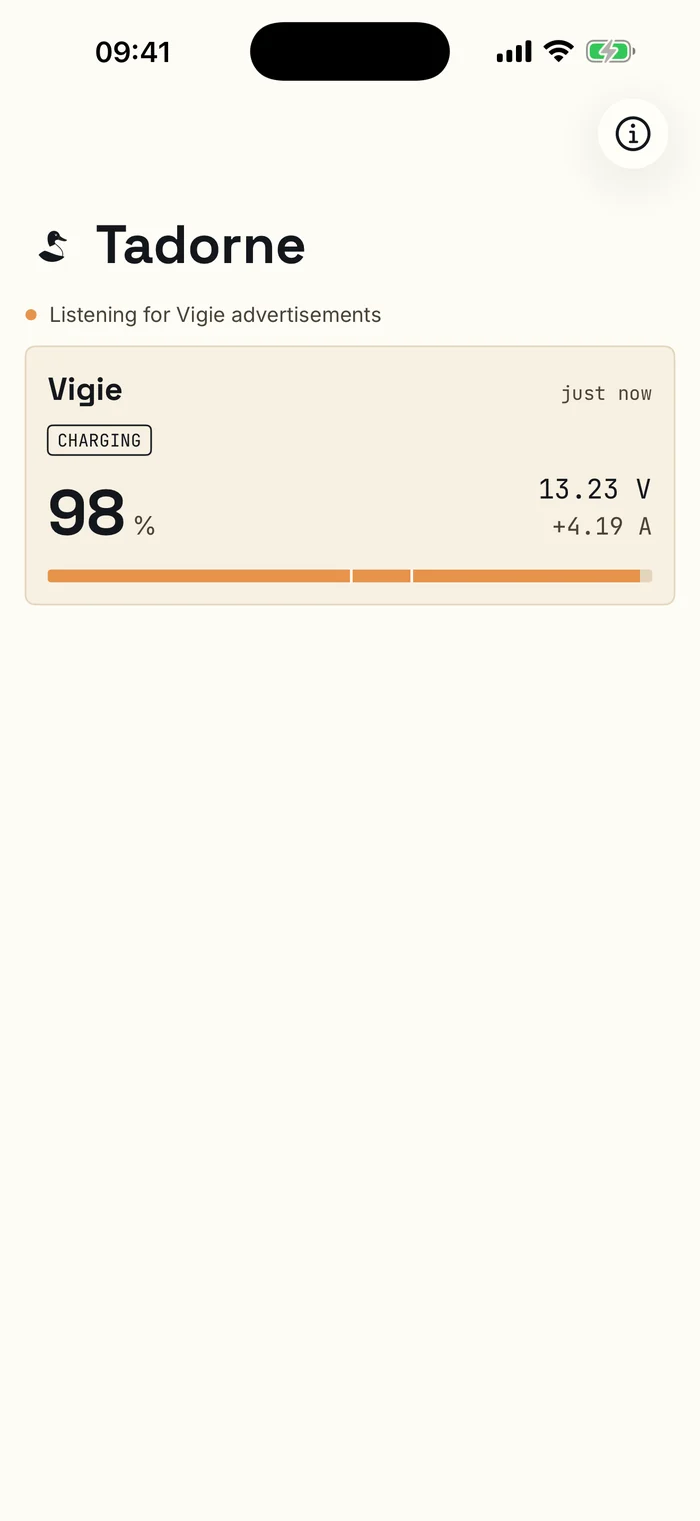

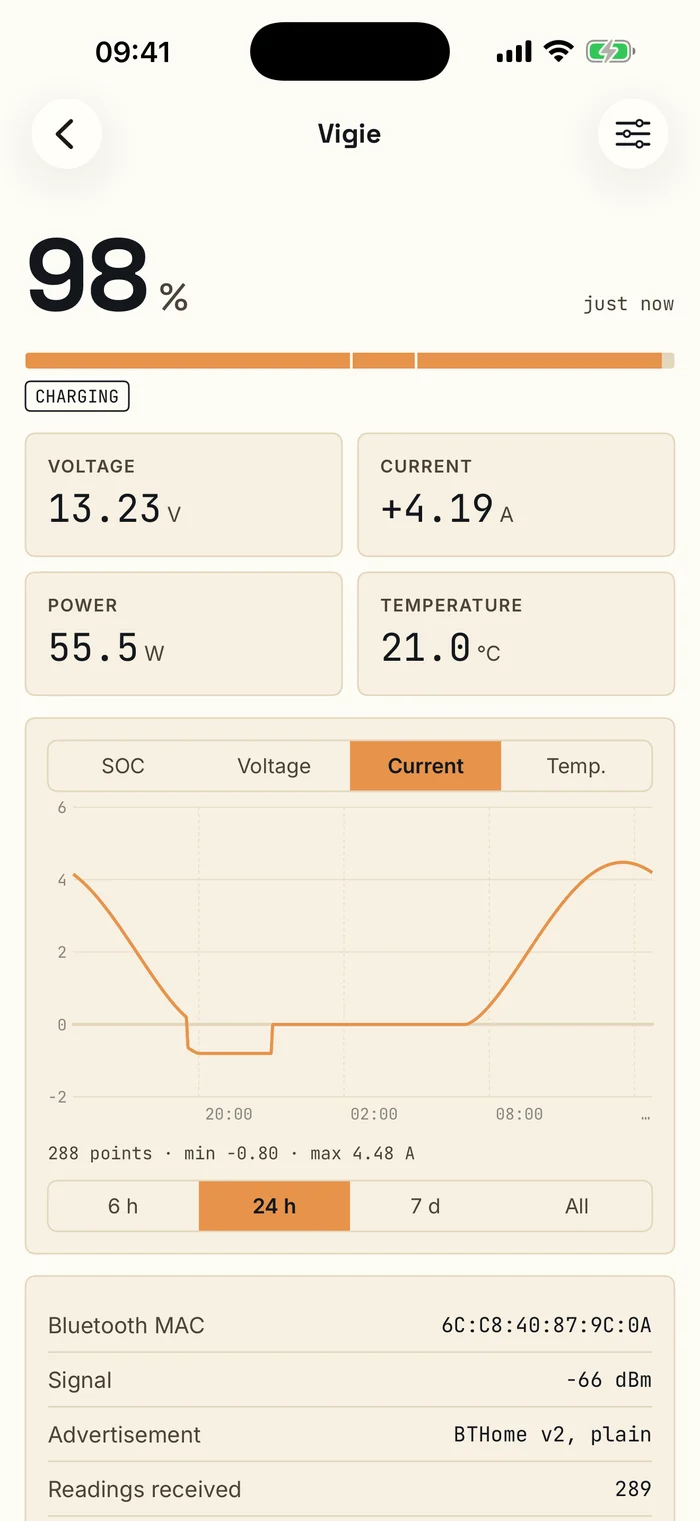

Tadorne app — node detail, node list, current history.

This revision of the board carries neither LoRa nor LTE: it is the measurement post, not the Internet gateway. The radio arbitration remains open, and the gateway will join the network without modifying the board.

State and open points

The bench validated the build of all three environments, the sleep cycle, the log and its recovery after reset, the 100 % resynchronisation and the low-voltage cutoff. Real ESP-NOW frame reception, BLE reception and everything touching the real INA226 remain to be verified on the board.
